The Unit cartoonist’s perspective: Accessorizing the M4 carbine

Master Sergeant George Hand US Army (ret) was a member of the 1st Special Forces Operational Detachment-Delta, The Delta Force. He is a now a master photographer, cartoonist and storyteller.

The M4 carbine completely slicked down is already a mighty-fine assault weapon, but nothing is above improvement. With the rise of a hypersensitive world, where one picture can change the game, the great members and I of the unit put out a request for some serious target acquisition and fire control hardware. What we didn't expect was the flood of equipment some good... some less than helpful.

I've seen how the evolution of weapons and kit works among pipe-hitters. It roughly follows this sequence: the newest brothers readily slap every new gadget onto their ARs and love and swear by them all. Soon their ARs become an unruly sort of Rube Goldberg contraption that resembles a deep space cruiser out of Star Wars. Inevitably SHOOTING... becomes a secondary or tertiary function of the... the thing!

There finally comes the time when the brother is tired of weeds, branches, socks, and whatever snagged up and caught on his "weapon," and the fact that he can no longer fire it from the prone or even hold it up steady firing off-hand... he starts to get wiser about his configuration; he resolutely removes from his M4 Carbine:

• the Hubble star finder scope he thought would be great for navigation
• the AM radio receiver dialed into the 24-hour continuous weather variables reporting station he thought would be great for fine aiming adjustments
• the Enterprise Photon Torpedo launch tube and rails are the next to go
• the 22 LR rim-fire spotting sub-rifle comes off; he would just have to learn to zero better
• (approximately) 19 linear feet of Picatinny rail segments
• (finally) the coffee press

But there are some pieces of gear that actually do make the M4 much more lethal than what those Neanderthal iron blade and peep sights have to offer. A red-dot scope will replace those nicely, perhaps even one with a couple of times (X) magnification power thrown in.

(An example red dot stop superimposes an adjustable red dot where your bullet will

impact)

A forward pistol grip is always a plus, lending stability to the weapon when firing, as it assists with recoil management and site-picture recovery. In the struggle between 'yes' forward pistol grip and 'no' forward pistol grip, a folding or collapsible pistol grip feature could quell the struggle.

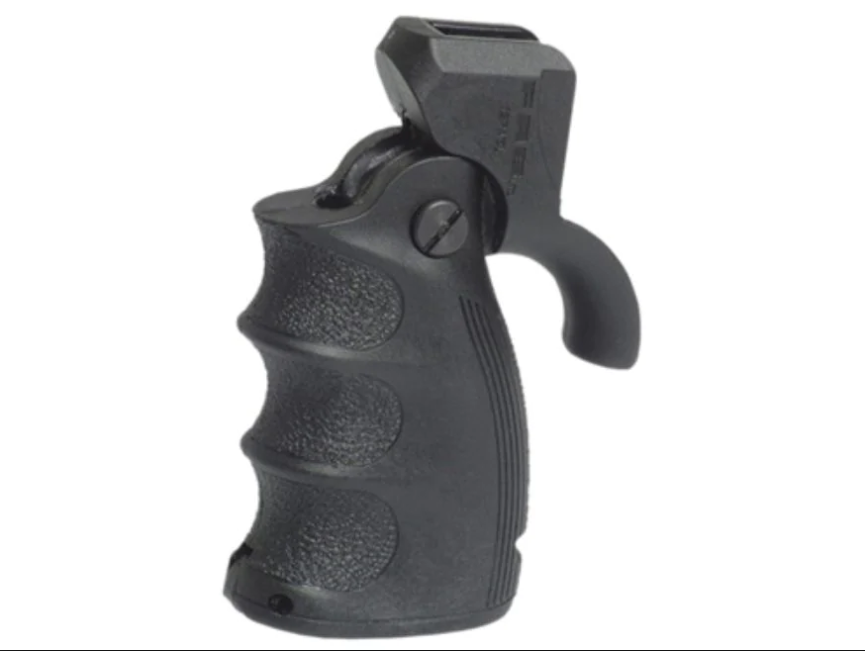

(A decent representative folding forward pistol grip)

Chamfered, flared, or beveled magazine wells are a real plus for combat shooters who require speed during reloads as well as accuracy. The simple fact is trying to align a rectangular-shaped magazine into a rectangular-shaped magazine well quickly requires a relatively precision alignment, one that takes a split-second more time than you might have.

The flared magazine well attachment provides a gentle sloping angle to the bottom of the well to allow for subtle errors in alignment of the magazine to be accepted foregoing the loss of time due to poor alignment. This feature is just as effective for pistols as well as rifle combat shooters.

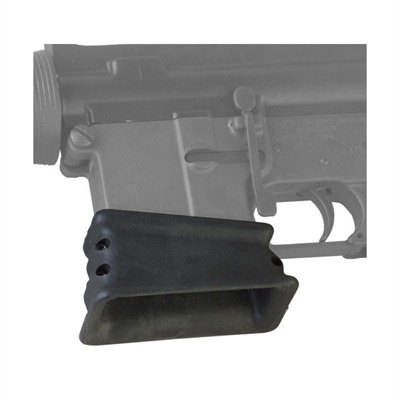

(An after-market flared magazine well attachment. Note the extended bolt release that allows the shooter to seat the magazine and release the bolt in almost the same movement)

Perhaps you may feel the need for a LASER aim point for your AR. That can be a visible red dot that is aligned with your rifle sight and allows you to hit whatever the light dot is on. It allows you to hit a target even without a sight picture such as firing from the hip. This advantage comes heavily into play when the shooter is restricted from his sight picture by the requirement to wear a protective (gas) mask. Carrying out the tactical scenario even farther, you may want your light dot to be infrared and only visible by Night Observation Devices (NODs).

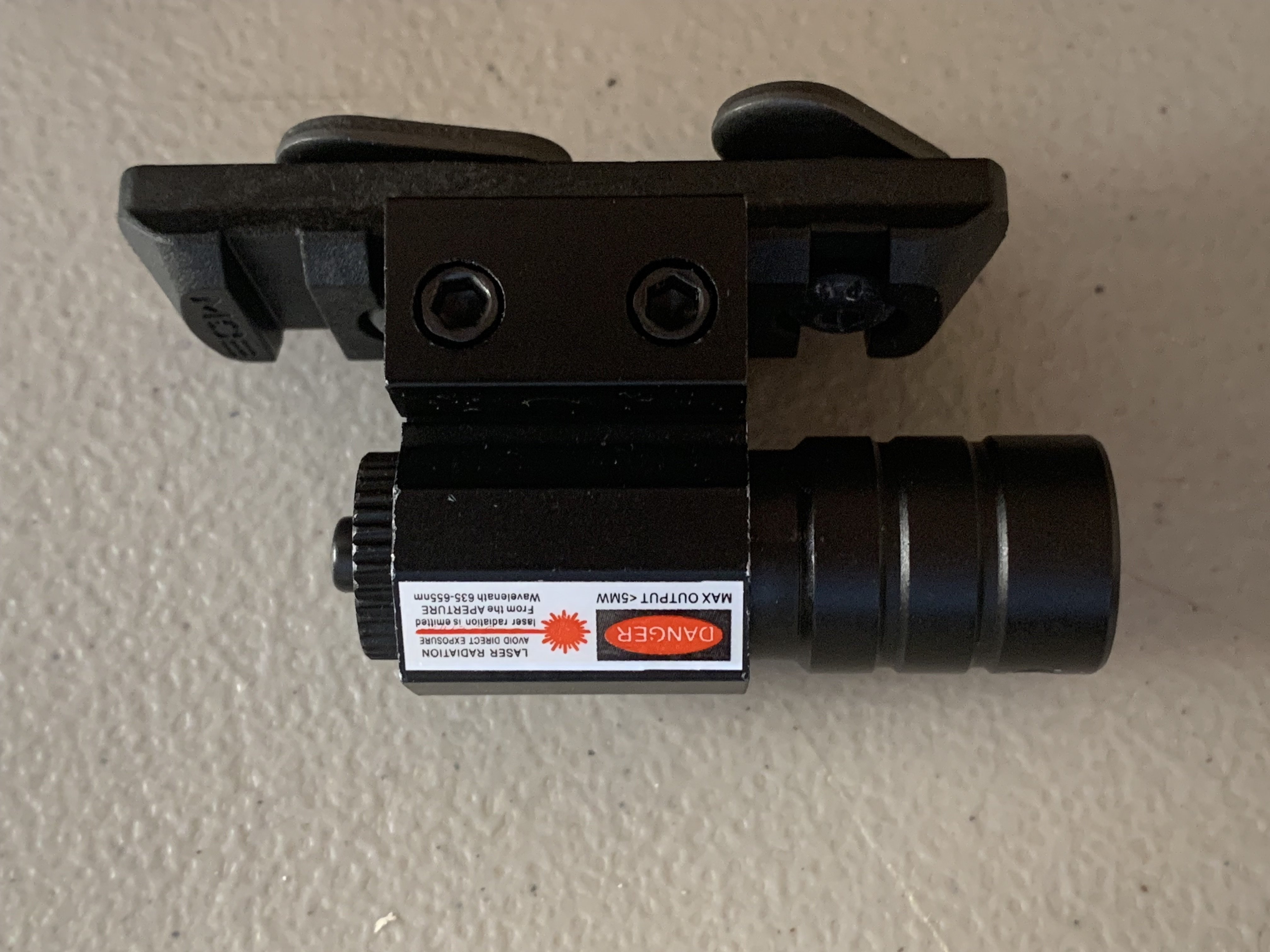

(An odd off-brand, small and very inexpensive visible red dot LASER mounted to a 2.5" Picatinny segment. A device such as this costs less than .00 w/o rail segment.)

We still need illumination. A strong white light source can always be capped by a snap-on/snap-off filter that renders the light to the Infrared spectrum, so no need for two separate devices. Technology affords us the luxury of going from attaching clumsy flashlights to ARs with pipe clamps, to small LED light devices of very high lumens and elegant mountings.

Subject to the accessories dance is the "need" to not only have all of these target acquisition and fire and control devices, but to also have them located in such a configuration that you can activate them all quickly while firing your weapon. After a while, it might seem like trying to play a piano concerto with one hand. Perhaps some of us would be better off playing the one-handed concerto...

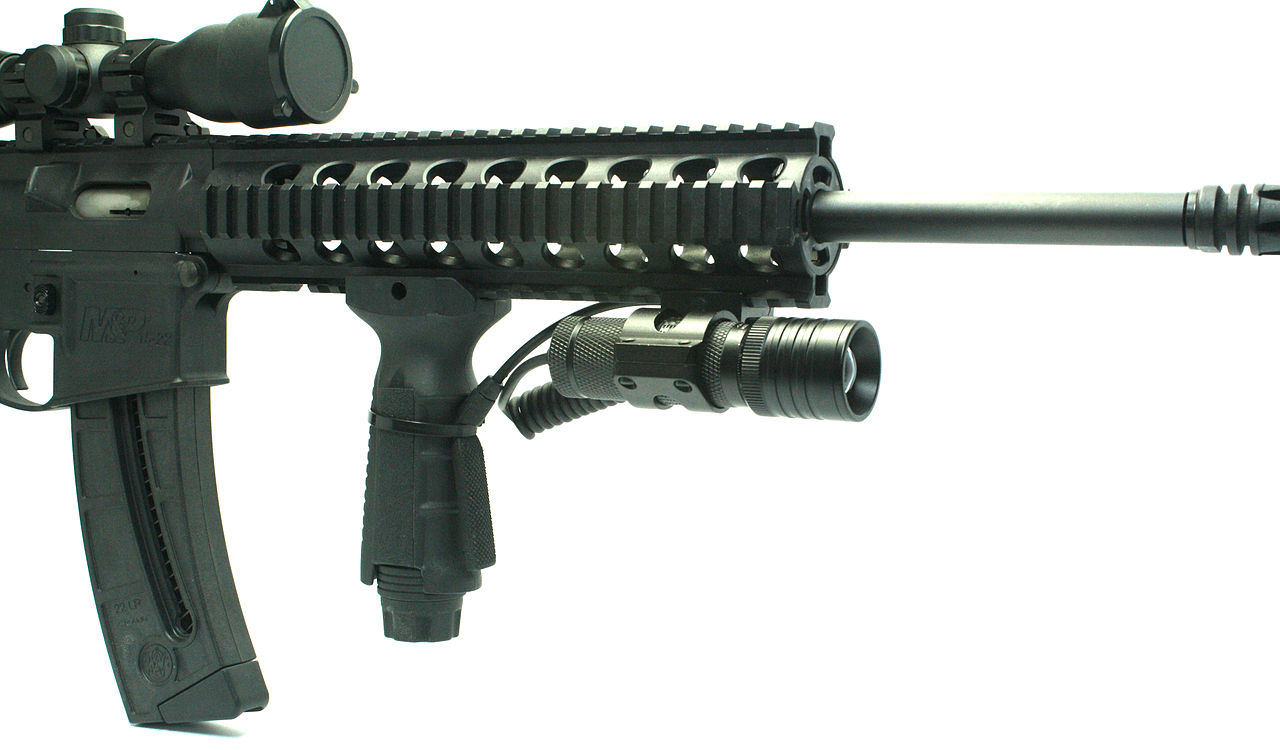

(Not the lowest profile solution today, but a workable illumination choice nonetheless. This lamp uses a high-lumen Halogen bulb for a flood)

It is an observation of mine that the older guys on the assault team seemed to have the slickest ARs; that is, the ones with the fewest gadgets on them. The reason for that is readily debatable, lending itself never to be fully defined. I think my own Delta Team leader summed it up the best I ever heard during yet another "kit argument." When he was asked to inject his two cents into the debate, he replied, "Let me tell you something, homes... 50 years ago the American Army assaulted Omaha Beach wearing f*cking WOOL!"
