MIGHTY TACTICAL

This howitzer gives the British Army long-range firepower

While the British Military has shrunk since the end of the Cold War, the country is still responsible for many great weapons systems. In fact, the towed artillery pieces the United States Military uses, the M119 105mm howitzer and the M777 155mm howitzer, are both British designs. However, the Brits also have an excellent self-propelled howitzer.

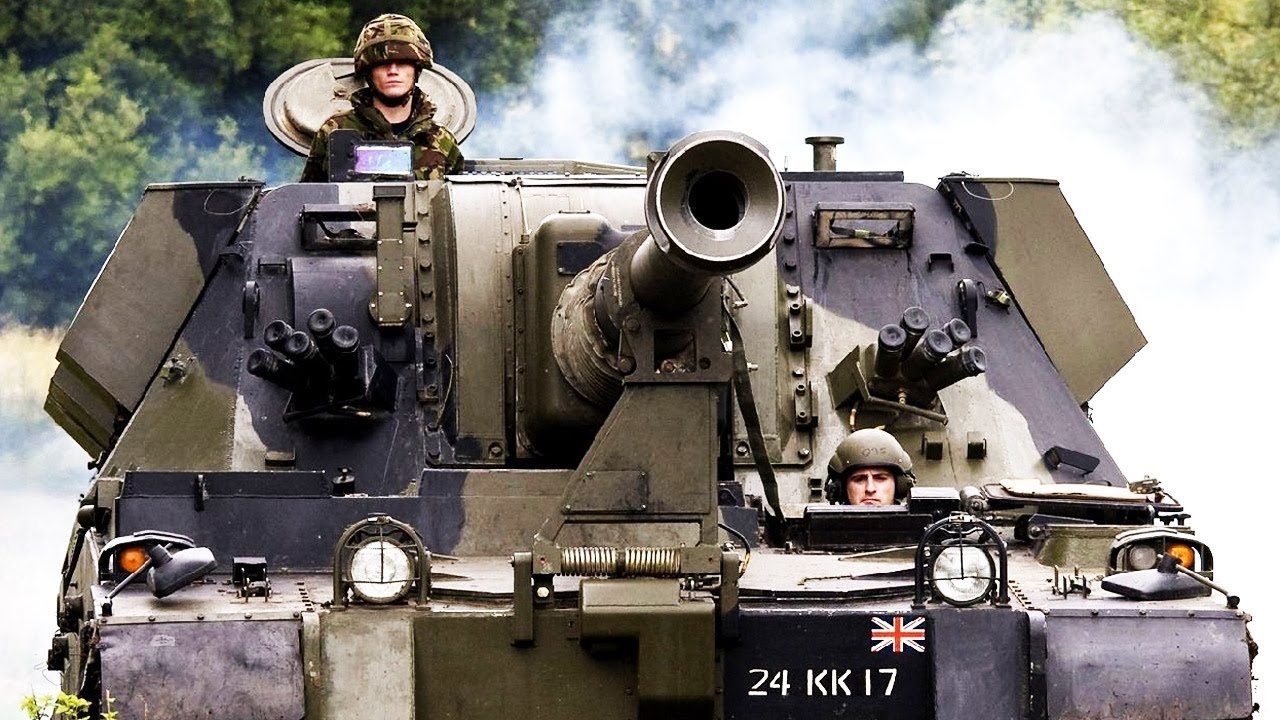

It’s called the AS-90, and it replaced two self-propelled guns in British service: The M109, an American design, and the Abbot, an indigenous design that packed a 105mm gun. The AS-90 uses a 155mm gun based on the FH70 towed howitzer. The AS-90 has an effective range of up to 18 miles, depending on the ammo used.

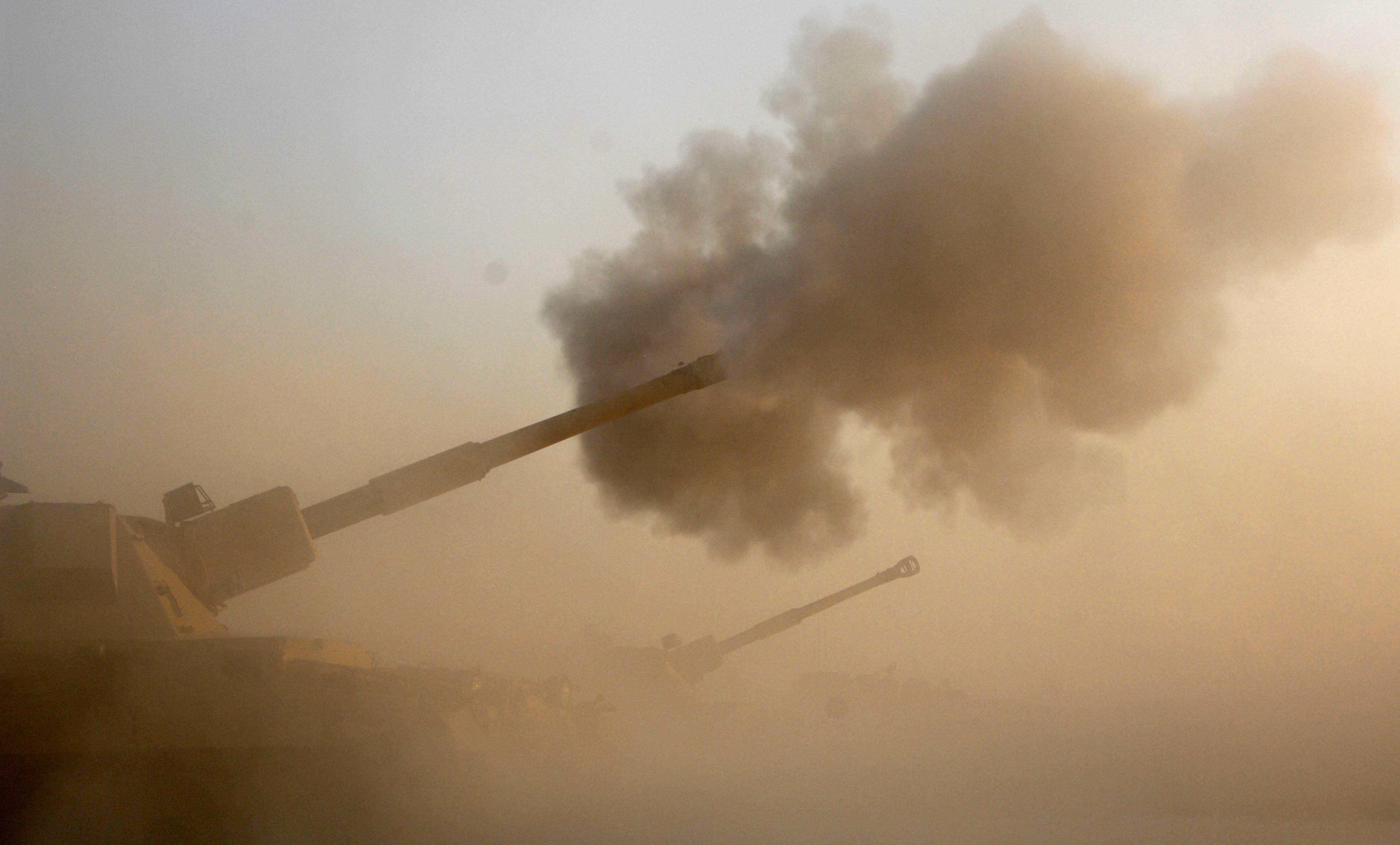

British Army AS-90 howitzers let loose during training in Iraq.

(Joint Combat Camera Center Iraq Photo by Pfc. Rhonda Roth-Cameron)

The system entered service in 1993, too late for Operation Desert Storm. Cutbacks after the fall of the Soviet Union meant that it also did not see a lengthy production run. It has a top speed of 34 miles per hour, which allows it to keep up with the Challenger 2, Britain’s main battle tank, which has a top speed of 37 miles per hour.

This 50-ton vehicle saw action during Operation Iraqi Freedom and in NATO peacekeeping missions in the Balkans, where it provided fire support. An improved version, the AS-90 “Braveheart,” was expected to feature a 33% longer barrel, but was cancelled after issues with the propellant emerged.

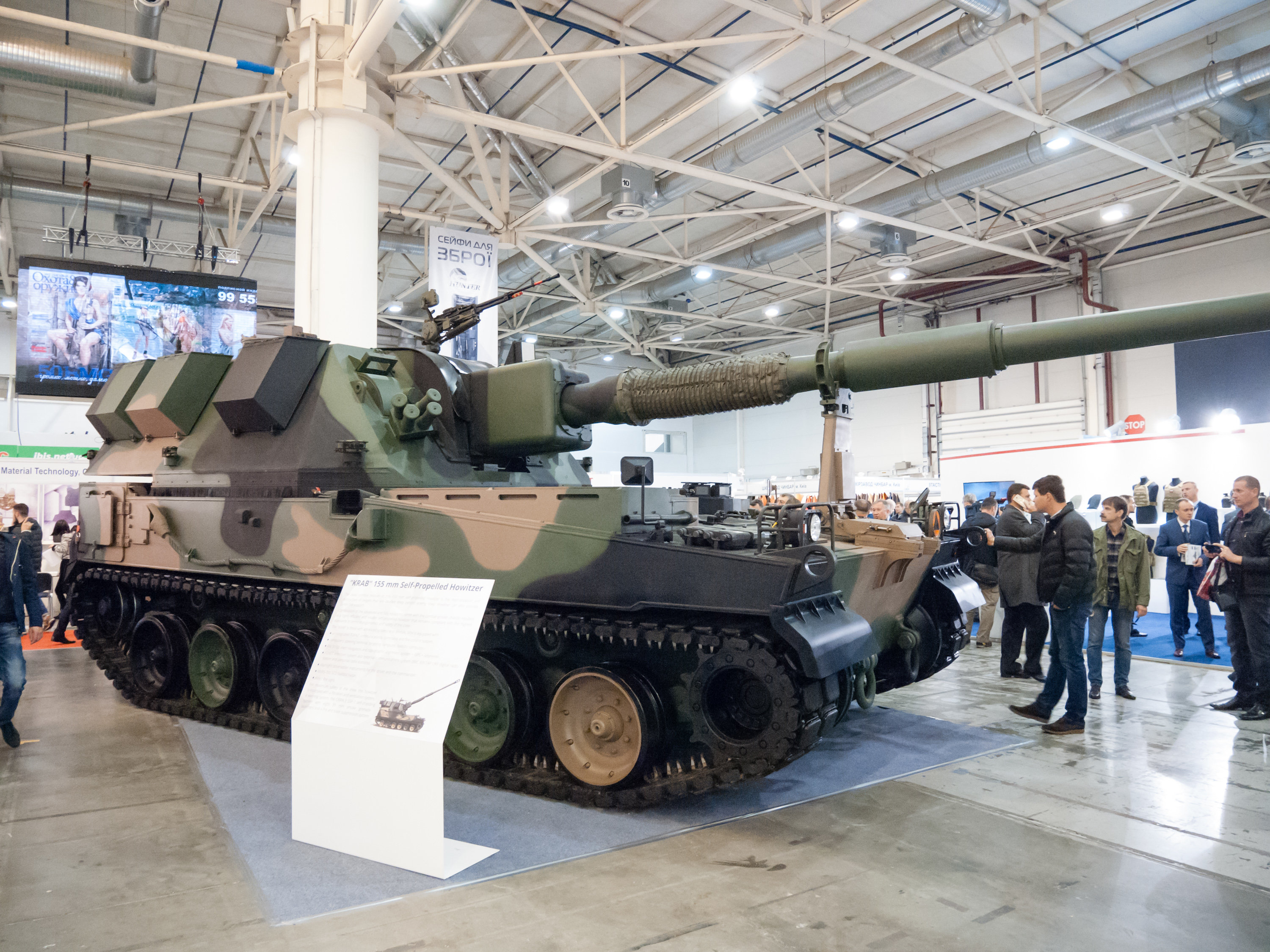

The Polish Army is also using a version of the AS-90 – well, the turret of the cancelled AS-90 Braveheart – on a K9 Thunder chassis.

(Photo by VoidWanderer)

The AS-90 has received special modifications to enable for better performance during desert operations. These upgrades include tracks designed to operate better on sand and better ways to keep the crew and the engine cool. Currently, a total of six British artillery regiments operate this vehicle.

Although the AS-90 Braveheart is getting up there in age, pieces of it will remain important for years. The turret has been mated with the chassis of a South Korean self-propelled howitzer, the K9 Thunder, to make the AHS Krab. The Polish Army is planning to operate 120 of these.

Learn more about this British cannon in the video below!

https://www.youtube.com/watch?v=9p7LeWAIKKI

www.youtube.com

MIGHTY TACTICAL

This is how GPS actually works – and why some devices might stop working

Developed over the course of decades, GPS has become far more ubiquitous than most people realize. Not just for navigation, its extreme accuracy in time keeping (+/- 10 billionths of a second) has been used by countless businesses the world over for everything from aiding in power grid management to helping manage stock market and other banking transactions. The GPS system essentially allows for companies to have near atomic clock level precision in their systems, including easy time synchronization across the globe, without actually needing to have an atomic clock or come up with their own systems for global synchronization. The problem is that, owing to a quirk of the original specifications, on April 6, 2019 many GPS receivers are about to stop working correctly unless the firmware for them is updated promptly. So what’s going on here, how exactly does the GPS system work, and who first got the idea for such a system?


On Oct. 4, 1957, the Soviet Union launched Sputnik. As you might imagine, this tiny satellite, along with subsequent satellites in the line, were closely monitored by scientists the world over. Most pertinent to the topic at hand today were two physicists at Johns Hopkins University named William Guier and George Weiffenbach.

As they studied the orbits and signals coming from the Sputnik satellites the pair realized that, thanks to how fast the satellites were going and the nature of their broadcasts, they could use the Doppler shift of the signal to very accurately determine the satellite’s position.

A replica of Sputnik 1.

(NASA)

Not long after, one Frank McClure, also of Johns Hopkins University, asked the pair to study whether it would be possible to do this the other way around. They soon found that, indeed, using the satellite’s known orbit and studying the signal from it as it moved, the observer on the ground could in a relatively short time span determine their own location.

This got the wheels turning.

Various systems were proposed and, in some cases, developed. Most notable to the eventual evolution of GPS was the Navy’s Navigation Satellite System (also known as the Navy Transit Program), which was up and running fully by 1964. This system could, in theory, tell a submarine or ship crew where they were within about 25 meters, though location could only be updated about once per hour and took about 10-15 minutes to acquire. Further, if the ship was moving, the precision would be off by about one nautical mile per 5 knots of speed.

Another critical system to the ultimate development of GPS was known as Timation, which initially used quartz clocks synchronized on the ground and on the satellites as a key component of how the system determined where the ground observer was located. However, with such relatively imprecise clocks, the first tests resulted in an accuracy of only about 0.3 nautical miles and took about 15 minutes of receiving data to nail down that location. Subsequent advancements in Timation improved things, even testing using an atomic clock for increased accuracy. But Timation was about to go the way of the Dodo.

By the early 1970s, the Navigation System Using Timing and Ranging (Navstar, eventually Navstar-GPS) was proposed, essentially combining elements from systems like Transit, Timation, and a few other similar systems in an attempt to make a better system from what was learned in those projects.

Fast-forward to 1983 and while the U.S. didn’t yet have a fully operational GPS system, the first prototype satellites were up and the system was being slowly tested and implemented. It was at this point that Korean Air Lines Flight 007, which originally departed from New York, refueled and took off from Anchorage, Alaska, bound for Seoul, South Korea.

What does this have to do with ubiquitous GPS as we know it today?

On its way, the pilots had an unnoticed autopilot issue, resulting in them unknowingly straying into Soviet airspace.

Convinced the passenger plane was actually a spy plane, the Soviets launched Su-15 jets to intercept the (apparently) most poorly crafted spy plane in history — the old “It’s so overt, it’s covert” approach to spying.

A Soviet Sukhoi Su-15 interceptor.

Warning shots were fired, though the pilot who did it stated in a later interview, “I fired four bursts, more than 200 rounds. For all the good it did. After all, I was loaded with armor piercing shells, not incendiary shells. It’s doubtful whether anyone could see them.”

Not long after, the pilots of Korean Air 007 called Tokyo Area Control Center, requesting to climb to Flight Level 350 (35,000 feet) from Flight Level 330 (33,000 feet). This resulted in the aircraft slowing below the speed the tracking high speed interceptors normally operated at, and thus, them blowing right by the plane. This was interpreted as an evasive maneuver, even though it was actually just done for fuel economy reasons.

A heated debate among the Soviet brass ensued over whether more time should be taken to identify the plane in case it was simply a passenger airliner as it appeared. But as it was about to fly into international waters, and may in fact already have been at that point, the decision was made to shoot first and ask questions later.

The attacking pilot described what happened next:

“Destroy the target…!” That was easy to say. But how? With shells? I had already expended 243 rounds. Ram it? I had always thought of that as poor taste. Ramming is the last resort. Just in case, I had already completed my turn and was coming down on top of him. Then, I had an idea. I dropped below him about two thousand metres… afterburners. Switched on the missiles and brought the nose up sharply. Success! I have a lock on.

Two missiles were fired and exploded near the Boeing plane causing significant damage, though in a testament to how safe commercial airplanes typically are, the pilots were able to regain control over the aircraft, even for a time able to maintain level and stable flight. However, they eventually found themselves in a slow spiral which ended in a crash killing all 269 aboard.

As a direct result of this tragedy, President Ronald Reagan announced on Sept. 16, 1983, that the GPS system that had previously been intended for U.S. military use only would now be made available for everyone to use, with the initial idea being the numerous safety benefits such a system would have in civil aviation over using then available navigation tools.

This brings us to how exactly the GPS system works in the first place. Amazingly complex on some levels, the actual nuts and bolts of the system are relatively straightforward to understand.

To begin with, consider what happens if you’re standing in an unknown location and you ask someone where you are. They reply simply — “You are 212 miles from Seattle, Washington.”

You now can draw a circle on a map with radius 212 miles from Seattle. Assuming the person giving you that information is correct, you know you’re somewhere along that circular line.

Not super helpful at this point by itself, you then ask someone else, and they say, “You are 150 miles from Vancouver BC.” Now you’re getting somewhere. When you draw that circle on the map, you’ll see it intersects at two points. You are standing on one of those two points. Noticing that you are not, in fact, floating in the ocean, you could at this point deduce which point you are on, but work with us here people.

Instead of making such an assumption, you decide your senses are never to be trusted and, after all, Jesus stood on water, so why not you? Thus, you ask a third person — they say, “You are 500 miles from Boise, Idaho.” That circle drawn, you now know exactly where you are in two dimensional space. Near Kamloops, Canada, as it turns out.

This is more or less what’s happening with GPS, except in the case of GPS you need to think in terms of 3D spheres instead of 2D circles. Further, how the system tells you your exact distance from a reference point, in this case each of the satellites, is via transmitting the satellites’ exact locations in orbit and a timestamp of the exact time when said transmission was sent. This time is synchronized across the various satellites in the GPS constellation.

The receiver then subtracts the current known time upon receiving the data from that transmission time to determine the time it took for that signal to be transmitted from the satellites to its location.

Combining that with the known satellite locations and the known speed of light with which the radio signal was propagated, it can then crunch the numbers to determine with remarkable accuracy its location, with margins of error owing to things like the ionosphere interfering with the propagation of the signal, and various other real world factors such as this potentially throwing things off a little.

Even with these potential issues, however, the latest generation of the GPS system can, in theory, pinpoint your location within about a foot or about 30 centimeters.

You may have spotted a problem here, however. While the GPS satellites are using extremely precise and synchronized atomic clocks, the GPS system in your car, for example, has no such synchronized atomic clock. So how does it accurately determine how long it took for the signal to get from the satellite to itself?

It simply uses at least four, instead of three, satellites, giving it the extra data point it needs to solve the necessary equations to get the appropriate missing time variable. In a nutshell, there is only one point in time that will match the edge of all four spheres intersecting in one point in space on Earth. Thus, once the variables are solved for, the receiver can adjust its own time keeping appropriately to be almost perfectly synchronized, at least momentarily, with the much more precise GPS atomic clocks. In some sense, this makes GPS something of a 4D system, in that, with it, you can know your precise point in not only space, but time.

By continually updating its own internal clock in this way, the receiver on the ground ends up being nearly as accurate as an atomic clock and is a time keeping device that is then almost perfectly synchronized with other such receivers across the globe, all for almost no cost at all to the end users because the U.S. government is footing the bill for all the expensive bits of the system and maintaining it.

Speaking of that maintanence, another problem you may have spotted is that various factors can, and do, continually move the GPS satellites off their original orbits. So how is this accounted for?

Tracking stations on Earth continually monitor the exact orbits of the various GPS satellites, with this information, along with any needed time corrections to account for things like Relatively, frequently updated in the GPS almanac and ephemeris. These two data sets are used for holding satellite status and positional information and are regularly broadcast to receivers, which is how said receivers know exact positions of the satellites in the first place.

The satellites themselves can also have their orbits adjusted if necessary, with this process simply being to mark the satellite as “unhealthy” so receivers will ignore it, then move it to its new position, track that orbit, and once that is accurately known, update the almanac and ephemeris and mark the satellite as “healthy” again.

So that’s more or less how GPS came to be and how it works at a high level. What about the part where we said many GPS devices may potentially stop working very soon if not updated?

Near the turn of the century something happened that had never happened before in the GPS world — dubbed a “dress rehearsal for the Y2K bug”. You see, as a part of the time stamp sent by the GPS satellites, there is something known as the Week Number — literally just the number of weeks that have passed since an epoch, originally set to Jan. 6, 1980. Along with this Week Number the number of seconds since midnight on the previous Saturday evening is sent, thus allowing the GPS receiver to calculate the exact date.

Artist’s conception of GPS Block II-F satellite in Earth orbit.

So what’s the problem with this? It turns out every 1024 weeks (about every 19 years and 8 months) from the epoch, the number rolls back to 0 owing to this integer information being in 10 bit format.

Thus, when this happens, any GPS receiver that doesn’t account for the Week Number Rollover, will likely stop functioning correctly, though the nature of the malfunction varies from vendor to vendor and device, depending on how said vendor implemented their system.

For some, the bug might manifest as a simple benign date reporting error. For others, such a date reporting error might mean everything from incorrect positioning to even a full system crash.

If you’ve done the math, you’ve probably deduced that this issue first popped up in August of 1999, only about four years after the GPS system itself was fully operational.

At this point, of course, GPS wasn’t something that was so ubiquitously depended on as it is today, with only 10-15 million GPS receivers in use worldwide in 1999 according to a 1999 report by the the United States Department of Commerce’s Office of Telecommunications. Today, of course, that number is in the billions of devices.

Thankfully, when the next Week Number Rollover event happens on April 6, 2019, it would seem most companies that rely on GPS for critical systems, like airlines, banking institutions, cell networks, power grids, etc., have already taken the necessary steps to account for the problem.

The more realistic problems with this second Week Number Rollover event will probably mostly occur at the consumer level, as most people simply are not aware of the issue at all.

Thankfully, if you’ve updated your firmware on your GPS device recently or simply own a GPS device purchased in the last few years, you’re probably going to be fine here.

However, should you own a GPS device that is several years old, that may not be the case and you’ll most definitely want to go to the manufacturer’s website and download any relevant updates before the second GPS epoch.

That public service announcement out of the way, if you’re now wondering why somebody doesn’t just change the specification altogether to stop using a 10 bit Week Number, well, you’re not the first to think of this. Under the latest GPS interface specifications, a 13 bit Week Number is now used, meaning in newer devices that support this, the issue won’t come up again for about a century and a half. As the machines are bound to rise up and enslave humanity long before that occurs, that’s really their issue to solve at that point.

Bonus Facts:

  • Ever notice that your cell phone tends to lock on to your GPS position extremely quickly, even after having been powered off for a long time? How does it do this when other GPS devices must wait to potentially receive a fresh copy of the almanac and ephemeris? It turns out cell phones tend to use something called Assisted GPS, where rather than wait to receive that data from the currently orbiting GPS satellites, they will instead get it from a central server somewhere. The phone may also simply use its position in the cell phone network (using signals from towers around) to get an approximate location to start while it waits to acquire the signal from the GPS satellites, partially masking further delay there. Of course, assisted GPS doesn’t work if you don’t have a cell signal, and if you try to use your GPS on your phone in such a scenario you’ll find that if you turn off the GPS for a while and then later turn it back on, it will take a while to acquire a signal like any other GPS device.
  • Starting just before the first Gulf War, the military degraded the GPS signal for civilian use in order to keep the full accuracy of the system as a U.S. military advantage. However, in May of 2000, this policy was reversed by President Bill Clinton and civilian GPS got approximately ten times more accurate basically overnight.
  • The military also created the ability to selectively stop others from using GPS at all, as India discovered thanks to the Kargil conflict with Pakistan in 1999. During the conflict, the U.S. blocked access to the GPS system from India owing to, at the time, better longstanding relations between the U.S. and Pakistan than the U.S. had with India. Thus, the U.S. didn’t want to seem like it was helping India in the war.

This article originally appeared on Today I Found Out. Follow @TodayIFoundOut on Twitter.

Articles

Need to see bad guys at night? This vet-run company helps MAWL the opposition

The company that makes some of the military’s most advanced laser and infrared beam illuminators has just released a civilian-legal version of it’s rifle-mounted sight used by some of America’s top troopers.


Laser and IR sight maker BE Meyers Co. commercialized its MAWL-DA laser illumination and designation device and dubbed it the “MAWL-C1+.” The sight complies with federal mandates on civilian-legal laser strength and performs almost as well is the ones special operators use in the field.

This is a big deal — but to understand why it’s a big deal, one must know a little more about the company and about the original MAWL itself.

Many of you reading this already know BE Meyers Co., albeit indirectly. If you’ve ever been in a contact while a Forward Air Controller laser designated a target, or stood by while a TACP pointed out a place that needed a little special CAS love, you know BE Meyers. They’re the folks who designed and built the IZLID for air-to-ground integration.

They’re also the company behind the GLARE RECOIL some of you gyrenes have picked up for some additional less-lethal capability (that’s some effective Hail and Warning right there).

Additionally, the IZLID makes for an excellent force multiplier if you need to zap someone (or at least point them out for someone in an aircraft to zap) or obtain PID a klick away…with a beam that’s invisible to the naked eye.

So, now you know where they’re coming from.

Last summer BE Meyers Co. released the MAWL-DA. Modular Advanced Weapon Laser (Direct Action). By numerous user accounts, the MAWL-DA was the greatest innovation in weaponized photonics (hell, any photonics) in a generation.

Apparently it really is that good.

Here’s a photo representation of what the MAWL-C1+ can do in using its IR pointer in low-light conditions. (Photo: BE Meyers)

The MAWL is an aiming laser that features a visible green laser, an IR pointer and a predetermined battery of IR illuminators (each intended for a specific operating environment). It’s ambi operated, low profile, tucked in close to the bore (so you don’t have to worry about mechanical offset), and easy to operate under stress (in the dark, wearing gloves, while dudes are trying to kill you or keep from being killed).

Every anecdotal report we’ve heard — and there have been several — indicate this thing performs significantly better than the PEQ-15. And because it’s modular, it’s easier to maintain.

Did we mention the HMFIC over at BE Meyers is an infantry combat veteran of both Iraq and Afghanistan?

BE Meyers President Matthew Meyers served in both Iraq and Afghanistan. (Photo: BE Meyers)

Requests for a commercial “civilian” version of the MAWL that doesn’t break the Federally mandated 0.7mW barrier have been incessant. We know, because we’re some of those who’ve been asking.

Now a device very nearly as good as the military version, but still far superior to anything else out there we’re familiar with, is available for individual purchase. So whether you’re about to deploy and your unit doesn’t have them, a LEO who understands the significant advantages of a device like this, or a responsible armed citizen who wants one Because Reasons, you’re good to go.

What the company tell us about the civilian-legal MAWL-C1+ is big brain speak. Up front though, what the end user needs to know is that you can use it intuitively and in a wide variety of operational conditions; for instance you can roll from a stack outdoors to indoors and back out adjusting the intensity and flood as you go without ever having to fumble-fart around with knobs and buttons and dials.

Just as importantly, you can punch way out there with it when you need to, even in an environment filled with photonic barriers like fog, smoke, or ambient light.

Learn more about the BE Meyers MAWL-C1+ right here.



Lists

6 strange military disappearances in the Bermuda Triangle

The “Bermuda Triangle” is a geographical area between Miami, Florida, San Juan, Puerto Rico, and the tiny island nation of Bermuda. Nearly everyone who goes to the Bahamas can tell you that it doesn’t necessarily mean you’ll die a horrible death.


Natural explanations usually range from compass problems, to changes in the Gulf Stream, or violent weather, the presence of methane hydrates, and to a large coincidence of human error. That doesn’t mean there hasn’t been a strange amount of disappearances that let the conspiracy theories gain some traction.

From 1946 to 1991, there have been over 100 disappearances. These are some of the military disappearances that have been lost in the Bermuda Triangle.

1. U.S.S. Cyclops – March 4th, 1918

(Photo via Wikimedia)

One of the U.S. Navy’s largest fuel ships at the time made an unscheduled stop in Barbados on its voyage to Baltimore. The ship was carrying 100 tons of manganese ore above what it could typically handle. All reports before leaving port said that it was not a concern.

The new path took the Cyclops straight through the Bermuda Triangle. No distress signal was sent. Nobody aboard answered radio calls.

This is one of the most deadly incidents in U.S. Navy history outside of combat, as all 306 sailors aboard were declared deceased by then-Assistant Secretary of the Navy Franklin D. Roosevelt.

2. and 3. USS Proteus and USS Nereus – November 23rd and December 10th 1941

Right: U.S.S. Proteus. Left: U.S.S. Nereus (Photos via Wikimedia)

Two of the three Sister ships to the U.S.S. Cyclops, The Proteus and Nereus, both carried a cargo of bauxite and both left St. Thomas in the Virgin Islands along the same exact path. Bauxite was used to create the aluminum for Allied aircraft.

Original theories focused on a surprise attack by German U-Boats, but the Germans never took credit for the sinking, nor were they in the area.

According to research by Rear Adm. George van Deurs, the acidic coal cargo would seriously erode the longitudinal support beams, thereby making them more likely to break under stress. The fourth sister ship to all three of the Cyclops, Proteus, and Nereus was the USS Jupiter. It was recommissioned as the USS Langley and became the Navy’s first aircraft carrier.

3. Flight 19 – December 5th, 1945

(Photo via Wikimedia)

The most well known and documented disappearance was that of Flight 19. Five TBM Avenger Torpedo Bombers left Ft. Lauderdale on a routine training exercise. A distress call received from one of the pilots said: “We can’t find west. Everything is wrong. We can’t be sure of any direction. Everything looks strange, even the ocean.”

Later, pilot Charles Taylor sent another transmission: “We can’t make out anything. We think we may be 225 miles northwest of base. It looks like we are entering white water. We’re completely lost.”

After a PBM Mariner Flying Boat was lost on this rescue mission, the U.S. Navy’s official statement was “We are not even able to make a good guess as to what happened.”

4. MV Southern Districts – 5 December 1954

(Photo via navsource.org)

The former U.S. Navy Landing Ship was acquired by the Philadelphia and Norfolk Steamship Co. and converted into a cargo carrier. During its service, the LST took part in the invasion of Normandy.

Its final voyage was from Port Sulphur, Louisiana, to Bucksport, Maine, carrying a cargo of sulfur. It lost contact as it passed through the Bermuda Triangle. No one ever heard from the Southern Districts again until four years later, when a single life preserver washed on the Florida shores.

5. Flying Box Car out of Homestead AFB, FL – June 5th, 1965

Same model as the aircraft lost over the Triangle (photo via Wikimedia)

The Fairchild C-119G and her original five crew left Homestead AFB at 7:49 PM with four more mechanics to aid another C-199G stranded on Grand Turk Island. The last radio transmission was received just off Crooked Island, 177 miles from it’s destination.

A month later on July 18, debris washed up on the beach of Gold Rock Cay just off the shore of Acklins Island (near where the crew gave its last transmission).

The most plausible theory of the mysterious disappearances in the Bermuda Triangle points to confirmation bias. If someone goes missing in the Bermuda Triangle, it’s immediately drawn into the same category as everything else lost in the area. The Coast Guard has stated that “there is no evidence that disappearances happen more frequently in the Bermuda Triangle than in any other part of the ocean.”

Of course, it’s more fun to speculate that one of the most traveled waterways near America may be haunted, may have alien abductions, or hold the Bimini’s secret Atlantean Empire.

The sea is a terrifying place. When sailors and airmen go missing, it’s a heartbreaking tragedy. Pointing to an easily debunkable theory cheapens the lose of good men and women.



YouTube, BuzzfeedBlue

MIGHTY HISTORY

Why the M113 APC will be around for a long time

To put it bluntly, the M113 armored personnel carrier looks like a big box on tracks. It’s equipped with a primary weapon that’s over 75 years old that isn’t particularly effective against its modern contemporaries. And yet it’s served with the United States Army for nearly sixty years and, even when it’s retired, it’ll stick around for a long time.

When it entered operational service in 1960, it was intended to haul 11 troops into battle. It had a crew of two: A driver and a vehicle commander who handled the vehicle’s primary weapon, the M2 “Ma Deuce” heavy machine gun.


M113s lead the way for troops in South Vietnam.

(US Army)

The M113 saw a lot of action in the Vietnam War, where it proved very versatile. Some versions were equipped with the M61 Vulcan, a 20mm Gatling gun, and were used as effective anti-aircraft vehicles. Others were outfitted with launchers for the BGM-71 TOW missile.

Some M113s were modified to carry mortars, like this one with a M120 120mm mortar.

(U.S. Army photo by SPC Joshua E. Powell)

Other variants quickly emerged, including a command vehicle, a smoke generator, an ambulance, and a cargo carrier. Two mortar carriers, the M106 (which carried a 107mm mortar) and the M125 (packing an 81mm mortar) also served, paving the way for the introduction of the M1064 (equipped with a 120mm mortar). The M113 chassis also carried the MIM-72 Chapparal surface-to-air missile and the MGM-72 Lance ballistic missile.

The M113 could carry 11 troops — two more than the M1126 Stryker.

(US Army)

Versions of this vehicle have served with nations across the world, including Canada, Norway, Egypt, and Italy. Over 80,000 M113s of all variants have been produced, which means it’ll be around for years with one nation or anything long after the U.S. retired it.

Learn more about this senior citizen of armored vehicles in the video below.

https://www.youtube.com/watch?v=4KZjpOZQabM

www.youtube.com

MIGHTY TACTICAL

This is how an RPG works

The United States and the Soviets disagreed on almost everything; except the fact that anti-tank infantry capabilities are necessary for decisive offensive combat. The Soviets fear our tanks because of their armor, speed, and firepower and raced us in the manufacture of rocket propelled grenades, also known as RPGs. Due to the variety of RPGs in circulation, we will focus on the RPG-7, the most widely used of all Soviet-era anti-tank weaponry.


(TRADOC BULLETIN NO. 3 U.S. Army)

The RPG-7 anti-tank grenade launcher is cheap, simple, and effective. The RPG-7 is part of one of many evolutionary branches of rockets. It is a decedent of the German Panzerfaust anti-tank weapon from which all RPG series stem from. In 1961 the RPG-7 was adopted by Soviet Armed forces.

The RPG-7 is 37.8 inches in length and weighs 14.5 lbs unloaded and 19 lbs when loaded with the 85mm caliber round (the rocket). It has a rate of fire of 4-6 rounds per minute at an arming range of 5 meters. It has a sighting range of 500 meters and a maximum range of 900 meters, at which point it self destructs. This speed is more or less three football fields per second.

The initial velocity of the rocket is 117 meters per second that increases up to 294 meters per second when the rocket assist engages. At full speed, it can penetrate up to 13 inches of armor at zero degrees.

This weapon has seen a wide range of use throughout the world along with the communist favorite AK-47.

How an RPG 7 works

www.youtube.com

The grenade is separated into two parts, the warhead and sustainer motor, and the booster charge. These two parts must be screwed together before the grenade is ready to fire.

When the projectile is first launched it is powered by a small strip powder charge to reduce the backblast area from harming the gunner. At approximately 11 meters the sustainer rocket kicks in, ignites, and boosts the rocket to maximum velocity.

The fins open after launch with canted surfaces that spin the rocket and stabilize the rocket in flight.

The rocket itself is 36.62 inches long and weighs 4.6 pounds. HEAT rounds are olive drab, and practice rounds are black. They use a point impact fuse with a base detonator.

The shape of the warhead is to penetrate tank armor by using the Munroe Effect:

The greatly increased penetration of an explosive into a surface (as of metal or concrete) that is caused by shaping a conical or hemispherical hollow in the forward end of an explosive cartridge – Merriam-Webster Dictionary

When the round detonates a small cone of metal forms and burns through the armor. There is no explosion after the core penetrates the armor, it is often the metal continuing out the other side of the target.

Soviets training.

(Larry Cook)

Since the RPG-7 is a direct fire weapon, it’s effectiveness on the battlefield is directly affected by the ability of the gunner. The weapon’s biggest weakness is crosswind when leading a target down range. In winds greater than 7 miles per hour, a gunner cannot expect to hit more than 50% of the time beyond 180 meters. They must calculate both wind direction and velocity, but even then results may vary.

There are two standard sights for this weapon: Iron sights and a telescopic sight.

Iron sights are permanently attached and can sight 200 to 500 meters with no wind or lead adjustment. In a conventional force, it is the backup sight system, but since most forces who use this weapon are unconventional, it is usually the primary.

The Soviet tactical doctrine regarding the RPG-7 states that it is most effective at 300 meters or at a point blank target with a height of two or more meters. The reasoning for 300 meters is that it will reduce the target reaction time to take evasive action or to counterattack. Even if it doesn’t kill the target, it’s still going to scare the sh*t out of it long enough to reload and strike again.

A U.S. Army test against a stationary M60 tank concluded that at 300 meters the probability of a gunner hitting his target is 30%. A second round has a 50% chance of hitting. The round was designed to penetrate 13 inches of armor but in practice penetrates 11 inches of steel instead.

During these tests, the U.S. Army also found that exposed tanks not in defilade are twice as vulnerable as one that is. A troop is to react immediately when fired at by an RPG-7. Because a second round is more likely to hit, it is imperative to suppress with machine guns, pop smoke, and move out of the kill zone.

(vietnamwarjournal)

Out of all the Soviet weapons, the deadliest is their propaganda infecting governments around the world.

Articles

This is what makes the MP7 so deadly in the hands of America’s special operators

Looking almost like an oversized pistol, the Heckler Koch MP7 is a cross between a submachine gun and a carbine that serves around the world in the hands of law enforcement and special operations units.


In the late 1980s, NATO developed requirements for a next-generation personal defense weapon that would be more effective against body armor than current pistol-caliber PDWs. While submachine guns based on the .45 ACP or 9mm deliver plenty of stopping power against unarmored targets, the growing availability of capable and affordable body armor meant that something new was needed.

SEAL Team 6 operators in Afghanistan armed with a mix of MP7s and HK416 rifles. (Photo from imgur)

So German gunmaker Heckler Koch developed the MP7 to meet these NATO requirements and it has served across the world since entering full production in 2001.

Some of the most commonly-spotted submachine guns in the hands of law enforcement and other professionals are the MP5 and its successor, the UMP. These guns typify the classic submachine gun, being automatic weapons chambered for pistol cartridges.

The MP7, however, is chambered for the 4.6x30mm cartridge. The steel core 4.6x30mm was developed specifically to be a lightweight pistol-ish round delivering the penetration more like a rifle cartridge. The smaller, lighter round means that more ammunition can be carried and that it has a minimal recoil even in full-automatic shooting.

The 4.6mm cartridge was developed by HK for the MP7 and its companion sidearm, the UCP pistol. The UCP never got past the prototype stage, but the 4.6x30mm has definitely made its mark in the MP7.

The MP7, currently being produced as updated models MP7A1 and MP7A2, weighs less than 5 pounds with a loaded magazine and is only 25-inches long with its adjustable stock fully extended. The barrel is 7.1 inches long and the magazine feeds into the pistol grip, creating a compact, easy to handle package.

The action is a gas-operated short stroke piston like that of HK’s HK416 rifle and is rated at 950 rounds per minute. A folding forward vertical grip comes standard on the MP7, though this has been replaced on the new MP7A2 model with a standard lower rail which allows the user to easily install any grip if desired. A full-length top rail comes with removable folding sights and permits the mounting of any standard optic or other accessory, and side rails can be easily added for additional mounting options.

The 4.6x30mm ammunition means that magazine size is decreased compared to those holding traditional cartridges. A 40-round MP7 magazine is comparable in size to 30-round 9mm magazine like the ones in the MP5. This means more firepower ready for action and fewer mag changes, both of which can easily spell the difference between success or failure in life and death situations.

The MP7 utilizes a great deal of polymer in its construction, and the weapon’s light weight, ergonomics, and physical size allow it to be fired accurately with one hand. When the stock is extended and the forward grip used, it suddenly becomes a mini carbine with performance similar to full-sized guns as long at the range stays below 200 meters or so.

Military special forces utilize the MP7 much like they have used submachine guns for decades. Smaller, lighter weapons that can provide automatic fire are invaluable for close-quarters combat and the 4.6x30mm’s armor-piercing capability make the MP7 a natural choice for elite units needing compact firepower. The weapon’s design and tactical rails mean that the gun can be easily upgraded as needed with off the shelf accessories. Additionally, the MP7 is suppressor-ready, adding another level of utility to an already-capable gun for special operations use.

The MP7 can be configured for a variety of missions and packs an armor-piercing punch. (Photo from AR15.com)

The U.S. Navy’s Naval Special Warfare Development Group, more commonly known as SEAL Team 6, is one of the most famous units that employ the MP7 in the special operations community. Many details of their equipment became known after the 2011 mission that killed Osama Bin Laden in Pakistan, and the MP7 was said to have been chosen by some of the raid’s members.

Pistols will remain common sidearms for as long as sidearms are needed. And while standard submachine guns using pistol ammunition will continue to serve a vital role for years to come and carbine-configuration assault rifles will remain the standard infantry weapon in militaries for the foreseeable future, the HK MP7 and other weapons like it will fill a crucial middle ground for those looking for the best of all worlds.

Articles

Special mission faceoff: Delta Force versus Spetsnaz

There’s a nasty villain who’s holed himself up in a compound somewhere in BadGuyLand. Both the United States and Russia want to nab this guy – and get him bad. Then, there is a need to rescue some hostages being held at a second compound.


The United States will send elements of the 1st Special Forces Operational Detachment – Delta, better known as “Delta Force.” Russia will send elite spetsnaz troops. Who do you send where?

Let’s put the movies starring Chuck Norris aside (even if they were pretty awesome – and where can I get that motorcycle?). The real Delta Force is filled with very deadly operators.

Founded in 1977, and taking over for an interim unit known as Blue Light. Some Delta operators have risen to great heights: Gen. Peter Schoomaker became Army Chief of Staff, while Lt. Gen. William G. “Jerry” Boykin rose to command Army Special Operations Command and the John F. Kennedy Special Warfare Center.

Delta operators are recruited from across the military, but the 75th Ranger Regiment seems to be a primary source, according to a 2006 statement during a Congressional testimony.

Delta Force is part of Joint Special Operations Command, which targets high value individuals and terrorist groups. (Photo from U.S. Army)

Delta was primarily a counter-terrorist group, but has since evolved to carry out a variety of missions, including the capture of high-value targets.

One such operation in 1993 turned into the Battle of Mogadishu. The unit was also involved in the capture of an ISIS chemical weapons expert this year, and reportedly also helped capture the Mexican drug lord known as “El Chapo” this past Janaury.

During Operation Just Cause, Delta operatives rescued Kurt Muse from one of Noriega’s prisons. Delta also carried out a major raid on an ISIS prison in Oct. 2015 that freed seven prisoners. Sergeant 1st Class Josh Wheeler was killed in the raid.

Russia’s spetsnaz were created for a different purpose.

Founded by the Soviet Union, they worked for the Main Intelligence Directorate, known as the GRU. Their mission was to track down and destroy American tactical and theater nuclear systems like the MGR-3 Little John and the MGM-31 Pershing missile.

But their mission evolved into hunting other targets.

When the Soviet Union invaded Afghanistan, spetsznaz took out the Afghan president. Spetsnaz have also seen action in Russia’s intervention in the Ukraine, the 2008 Russo-Georgian War, and the Syrian civil war. Russia trained a lot of them – according to Viktor Suvarov, a defecting Soviet officer, there were 20 brigades and 41 companies of spetsnaz in 1978.

That number went up after the invasion of Afghanistan.

Russian Spetsnaz in small arms training.

Spetsnaz and Delta each boast the usual small arms (assault rifles and pistols). The spetsznaz have some unique specialized gear, like the NRS-2 survival knife that can fire a pistol round, and the VSS Vintorez sniper rifle that is capable of select-fire. The large size of spetsnaz – 12 formations of brigade or regimental size in 2012 – means that they are not as selective as Delta.

So, who do you send where? Since the spetsnaz are almost mass-produced, it makes more sense to send them after the high-value target. If the guy lives to be turned over to people like Jose Rodriguez and James Mitchell who can… encourage him to talk, fine.

But Delta Force will be needed for the hostage rescue mission, since they have performed it very well in the past.

Articles

This is the incredible history of the deadly Harpoon Missile System

Boeing’s Harpoon Missile System is an all-weather, over-the-horizon, anti-ship weapon that is extremely versatile. The U.S. started developing the Harpoon in 1965 to target surfaced submarines up to 24 miles away, hence its name “Harpoon,” a weapon to kill “whales,” a naval slang term used to describe submarines.


Related: The U.S. Navy Testing a “game-changing” new missile

It was a slow moving project at first until the Six-Day War of 1967 between Israel and Egypt. During the war, Egypt sunk the Israel destroyer INS Eilat from 14 miles away with Soviet-made Styx anti-ship missiles launched from a tiny patrol boat. It was the first ship in history to be sunk by anti-ship missiles.

The surface-to-surface destruction shocked senior U.S. Navy officers; after all, it was the height of the Cold War, and the weapon indirectly alerted the U.S. of Soviet capabilities at sea. In 1970 Admiral Elmo Zumwalt—then Chief of Naval Operations—accelerated the Harpoon project, strategically adapting it for deployment from air and sea. Seven years later, the first Harpoon was successfully deployed.

May 1992 air-to-air view of an F-16 Fighting Falcon equipped with an AGM-84 Harpoon all-weather anti-ship missile over Eglin Air Force Base. USAF photo by Cindy Farmer.

Today, the U.S. and its allies—more than 30 countries around the world—are the primary users of the weapon. 2017 marks its 50th anniversary, and it’s only getting better with age. Over the decades, the missile has been updated to include navigation technology, such as GPS, Inertial navigation system (INS), and other electronics to make it more accurate and versatile against ships and a variety of land-based targets.

This Boeing video describes the incredible history behind the Harpoon Missile System and its evolution throughout the years.

Watch:

Boeing, YouTube
MIGHTY TACTICAL

Navy-trained dolphins could be roaming the seas with toxic dart guns

They may not be sharks with freaking laser beams attached to their heads, but they might be just as bad when roaming freely around the oceans. The U.S. Navy’s cetacean training program should come as no surprise to any naval warfare enthusiast. The Navy has been training sea animals to detect mines for decades.

What might surprise people is that some of those animals escaped in the wake of Hurricane Katrina and could be roaming the oceans as you read this.


“… and thanks for all the fish.”

(U.S. Navy photo by Brian Aho)

The Navy trains animals like the California Sea Lion and Bottlenose dolphins to retrieve lost equipment and patrol certain seaways for individual swimmers who might be infiltrating military bases via the water. Dolphins are particularly useful due to their high intelligence and built-in sonar that allows them to detect people and objects they might not ever see. In the Global War on Terror, the Navy reportedly began training dolphins to shoot potential terrorists targeting Navy ships.

But a special investigator claimed that after Hurricane Katrina, a few of these deadly dolphin guards escaped, and the Navy has been looking for them ever since. He cites reports that the Navy had repeatedly assisted other groups in finding groups of dolphins, many wearing special harnesses, but refusing to release the dolphins to their owners before secretly examining them.

That investigator, Leo Sheridan, says the Navy’s examinations were an attempt to find out if those dolphins belonged to an oceanarium or to the U.S. Navy.

“My concern is that they have learnt to shoot at divers in wetsuits who have simulated terrorists in exercises. If divers or windsurfers are mistaken for a spy or suicide bomber and if equipped with special harnesses carrying toxic darts, they could fire,” Sheridan told The Guardian. “The darts are designed to put the target to sleep so they can be interrogated later, but what happens if the victim is not found for hours?”

The alleged dolphin assassins were supposedly being held in training ponds near Louisiana’s Lake Pontchartrain and were controlled through radio signals transmitted to the animal via a special harness. The Navy has never admitted any of its dolphins escaped in the wake of Katrina or anywhere else.

MIGHTY TACTICAL

New guided missile frigates will be ready for war by 2025

The Navy is now strengthening and extending conceptual design deals with shipbuilders tasked with refining structures and presenting options for a new Navy multi-mission Guided Missile Frigate — slated to be ready for open warfare on the world’s oceans by the mid 2020s.

Navy envisions the Frigate, FFG(X), able to sense enemy targets from great distances, fire next-generation precision weaponry, utilize new networking and ISR technologies, operate unmanned systems and succeed against technically advanced enemies in open or “blue” water combat, according to service statements.


In early 2018, Naval Sea Systems Command chose five shipbuilders to advance designs and technologies for the ship, awarding development deals to General Dynamics Bath Iron Works, Austal USA, Huntington Ingalls, Marinette Marine Corporation, and Lockheed Martin.

The service has now modified these existing deals, first announced in February 2018, to enable the shipbuilders to continue their conceptual design work and “mature their proposed ship design to meet the FFG(X) System Specification,” according to the deal modifications.

The Navy expects that new weapons and sensors will better enable the ship to destroy swarming small boat attacks, support carrier strike groups, conduct dis-aggregated operations, attack enemies with an over-the-horizon missile, and engage in advanced surface and anti-submarine warfare, service statements specify.

Lockeheed Martin’s conceptual design for the FFG(X).

“These Conceptual Design awards will reduce FFG(X) risk by enabling industry to mature their designs to meet the approved FFG(X) capability requirements. The Navy has not changed its FFG(X) capability requirements,” Alan Baribeau, spokesman for Naval Sea Service Command, told Warrior Maven.

The Navy hopes to expedite development to award a production contract in 2020 and ultimately deploy the new ship in the early to mid-2020s. For this reason, bidders were required to submit designs that have been “demonstrated at sea” and already paired with a shipyard for rapid production, according to the previous service solicitation.

“The Conceptual Design effort will inform the final specifications that will be used for the Detail Design and Construction Request for Proposal that will deliver the required capability for FFG(X),” the Navy’s contract announcement said.

Service developers seem to be heavily emphasizing sensor networking, weapons integration and targeting technology as it navigates this next phase of development.

“The FFG(X) small surface combatant will expand blue force sensor and weapon influence to provide increased information to the overall fleet tactical picture while challenging adversary Intelligence, Surveillance, Reconnaissance, and Tracking (ISRT) efforts,” Naval Sea Systems Command FFG(X) documents said.

The “blue force sensor” language is explained by Navy developers as integral to the Navy’s Distributed Maritime Operations Concept which, as evidenced by its name, seeks to enable a more dispersed and networked attack fleet suited for dis-aggregated operations as needed.

Also, by extension, longer range sensors will be needed to identify enemy attackers now equipped with long-range precision strike weapons and enable command and control across vast distances of open water and coastal patrol areas.

The Navy vision for the ship further specifies this, saying the “FFG(X) will be capable of establishing a local sensor network using passive onboard sensors, embarked aircraft and elevated/tethered systems and unmanned vehicles to gather information and then act as a gateway to the fleet tactical grid using resilient communications systems and networks.”

Along these lines, the Navy’s FFG(X) Request for Proposal identifies a need for a netted sensor technology called Cooperative Engagement Capability (CEC).

CEC is an integral aspect of key emerging ship-defense technologies aimed at “netting” sensors and radar technologies in order to better identify and destroy approaching threats such as anti-ship missiles, drones and enemy aircraft.

“CEC is a sensor netting system that significantly improves battle force anti-air warfare capability by extracting and distributing sensor-derived information such that the superset of this data is available to all participating CEC units,” a Raytheon statement said.

Current analysis is no longer restricted to the idea of loosely basing the “hull design” upon the LCS, as was previously the case, Navy officials say.

Designs for the ship no longer merely envision a more “survivable” variant of an LCS. Previous FFG(X) requirements analyses conducted by a Navy Frigate Requirements Evaluation Team examined the feasibility of making the ship even more lethal and survivable than what previous plans had called for, Navy officials said.

Existing plans for the Frigate have considered “space armor” configurations, a method of segmenting and strengthening ship armor in specified segments to enable the ship to continue operations in the event that one area is damaged by enemy attack. Discussions for Frigate technologies have included plans for an MH-60R helicopter, Fire Scout drone and ship defense technologies such as SeaRAM.

The Navy already plans for the new Frigate to be integrated with anti-submarine surface warfare technologies including sonar, an over-the-horizon missile and surface-to-surface weapons, which could include a 30mm gun and closer-in missiles such as the HELLFIRE. An over-the-horizon missile chosen by the Navy for the LCS is the Naval Strike Missile by Kongsberg-Raytheon.

Navy plans for the FFG(X) also call for advanced electronic warfare tech along with both variable depth and lightweight sonar systems.

The new ship may also have seven 11-meter Rigid Inflatable Boats for short combat or expeditionary missions such as visiting, searching and boarding other ships.

The Rigid Hull Inflatable Boat.

In addition, Navy developers explain that the ship will be configured in what’s called a “modular” fashion, meaning it will be engineered to accept and integrate new technologies and weapons as they emerge. It certainly seems realistic that a new, even more survivable Frigate might be engineered with an additional capacity for on-board electrical power such that it can accommodate stronger laser weapons as they become available.

The Navy’s Distributed Maritime Operations Concept builds upon the Navy’s much-discussed “distributed lethality” strategy. This strategic approach, in development for several years now, emphasizes the need to more fully arm the fleet with offensive and defensive weapons and disperse forces as needed to respond to fast-emerging near-peer threats.

Part of the rationale is to move back toward open or “blue water” combat capability against near peer competitors emphasized during the Cold War. While the strategic and tactical capability never disappeared, it was emphasized less during the last 10-plus years of ground wars wherein the Navy focused on counter-terrorism, counter-piracy and things like Visit Board Search and Seizure. These missions are, of course, still important, however the Navy seeks to substantially increases its offensive “lethality” in order to deter or be effective against emerging high-tech adversaries.

Having longer-range or over-the-horizon ship and air-launched weapons is also quite relevant to the “distributed” portion of the strategy which calls for the fleet to have an ability to disperse as needed. Having an ability to spread out and conduct dis-aggregated operations makes Navy forces less vulnerable to enemy firepower while. At the same time, have long-range precision-strike capability will enable the Navy to hold potential enemies at risk or attack if needed while retaining safer stand-off distance from incoming enemy fire.

This article originally appeared on Warrior Maven. Follow @warriormaven1 on Twitter.

MIGHTY TACTICAL

The Army’s new artillery destroys targets without GPS

The US Army is developing precision-guided 155mm rounds that are longer range than existing shells and able to conduct combat missions in a GPS-denied war environment.

The Precision Guidance Kit Modernization (PGK-M) is now being developed to replace the standard PGK rounds, which consist of an unguided 155 round with a GPS-fuse built into it; the concept with the original PGK, which first emerged roughly 10 years ago, was to bring a greater amount of precision to historically unguided artillery fire.


Now, Army developers with the Army’s Program Executive Office Ammunition at Picatinny Arsenal are taking the technology to a new level by improving upon the range, accuracy, and functionality of the weapon. Perhaps of greatest importance, the emerging PGK-M shell is engineered such that it can still fire with range and accuracy in a war environment where GPS guidance and navigation technology is compromised or destroyed.

The emerging ammunition will be able to fire from standard 155mm capable weapons such as an Army M777 lightweight towed howitzer and M109 howitzer.

“PGK-M will provide enhanced performance against a broad spectrum of threats. In addition, PGK-M will be interoperable with the Army’s new long-range artillery projectiles, which are currently in parallel development,” Audra Calloway, spokeswoman for the Army’s Picatinny Arsenal, told Warrior Maven.

BAE Systems is among several vendors currently developing PGK-M with the Army’s Defense Ordnance Technology Consortium. BAE developers say the kits enable munitions to make in-flight course corrections even in GPS-jammed environments.

A U.S. Army M109 howitzer.
(U.S. Army photo by Sgt. Jessica A. DuVernay)

“Our experience with munitions handling, gun launch shock, interior ballistics, and guidance and fire control uniquely positions us to integrate precision technology into the Army’s artillery platforms,” David Richards, Program Manager, Strategic Growth Initiatives for our Precision Guidance and Sensing Solutions group, BAE Systems, told Warrior Maven in a statement.

This technological step forward is quite significant for the Army, as it refines its attack technologies in a newly-emerging threat environment. The advent of vastly improved land-fired precision weaponry began about 10 years ago during the height of counterinsurgency warfare in Iraq and Afghanistan. GPS-guided 155m Excalibur rounds and the Army’s GPS and inertial measurement unit weapon, the Guided Multiple Launch Rocket System, burst onto the war scene as a way to give commanders more attack options.

Traditional suppressive fire, or “area weapons” as they have been historically thought of, were not particularly useful in combat against insurgents. Instead, since enemies were, by design, blended among civilians, Army attack options had little alternative but to place the highest possible premium upon precision guidance.

GMLRS, for example, was used to destroy Taliban leaders in Afghanistan, and Excalibur had its combat debut in the 2007, 2008 timeframe. With a CEP of roughly 1-meter Excalibur proved to be an invaluable attack mechanism against insurgents. Small groups of enemy fighters, when spotted by human intel or overhead ISR, could effectively be attack without hurting innocents or causing what military officials like to call “collateral damage.” PGK was initially envision as a less expensive, and also less precise, alternative to Excalibur.

The rise of near peer threats, and newer technologies commensurate with larger budgets and fortified military modernization ambitions, have created an entirely new war environment confronting the Army of today and tomorrow. Principle among these circumstances is, for example, China’s rapid development of Anti-Satellite, or ASAT weapons.This ongoing development, which has both the watchful eye and concern of US military strategists and war planners, underscores a larger and much discussed phenomenon – that of the United States military being entirely too reliant upon GPS for combat ops. GPS, used in a ubiquitous way across the Army and other military services, spans small force-tracking devices to JDAMs dropped from the air, and much more, of course including the aforementioned land weapons.

Marines assigned to the 13th Marine Expeditionary Unit attach a Joint Direct Attack Munition (JDAM) to an AV-8B Harrier II.
(U.S. Navy photo by Mass Communication Specialist Seaman Apprentice Veronica Mammina)

Advanced jamming techniques, electronic warfare and sophisticated cyberattacks have radically altered the combat equation – making GPS signals vulnerable to enemy disruption. Accordingly, there is a broad consensus among military developers, and industry innovators that far too many necessary combat technologies are reliant upon GPS systems. Weapons targeting, ship navigation, and even small handheld solider force-tracking systems all rely upon GPS signals to operate.

Accordingly, the Army and other services are now accelerating a number of technical measures and emerging technologies designed to create what’s called Position, Navigation and Timing (PNT), or GPS-like guidance, navigation and targeting, without actually needing satellites. This includes ad hoc software programmable radio networks, various kinds of wave-relay connectivity technologies and navigational technology able to help soldiers operate without GPS-enabled force tracking systems.

At the same time, the Army is working with the Air Force on an integrated strategy to protect satellite comms, harden networks, and also better facilitate joint-interoperability in a GPS-denied environment.

The Air Force Space strategy, for instance, is currently pursuing a multi-fold satellite strategy to include “dispersion,” “disaggregation” and “redundancy.” At the same time, the service has also identified the need to successfully network the force in an environment without GPS. Naturally, this is massively interwoven with air-ground coordination. Fighters, bombers and even drones want to use a wide range of secure sensors to both go after targets and operate with ground forces.

The Air Force Research Laboratory (AFRL) is working with industry to test and refine an emerging radiofrequency force-tracking technology able to identify ground forces’ location without needing to rely upon GPS.

Given all this, it is by no means insignificant that the Army seeks guided rounds able to function without GPS. Should they engage in near-peer, force-on-force mechanized ground combat against a major, technologically advanced adversary, they may indeed need to launch precision attacks across wide swaths of terrain – without GPS.

Finally, by all expectations, modern warfare is expected to increasingly become more and more dispersed across wider swaths of terrain, while also more readily crossing domains, given rapid emergence of longer range weapons and sensors.

This circumstance inevitably creates the need for both precision and long-range strike. As one senior Army weapons developer with PEO Missiles and Space told Warrior Maven in an interview — Brig. Gen. Robert Rasch — …”it is about out-ranging the enemy.”
MIGHTY TACTICAL

Marines print barracks in 40 hours with expeditionary setup

The Marine Corps is leading the way in employing advanced technologies and robotic construction.

In early August 2018, the Additive Manufacturing Team at Marine Corps Systems Command teamed up with Marines from I Marine Expeditionary Force to operate the world’s largest concrete 3D printer at the U.S. Army Engineer Research and Development Center in Champaign, Illinois. As a joint effort between the Marine Corps, Army and Navy Seabees, an expeditionary concrete 3D printer was used to print a 500-square-foot barracks hut in 40 hours.


The Marine Corps is currently staffing a deliberate urgent needs statement and concept of employment for this technology. The results of the field user evaluation will inform future requirements to give the Corps a concrete construction additive manufacturing program of record.

“This exercise had never been done before,” said Capt. Matthew Friedell, AM project officer in MCSC’s Operations and Programs/G-3. “People have printed buildings and large structures, but they haven’t done it onsite and all at once. This is the first-in-the-world, onsite continuous concrete print.”

Marines from I Marine Expeditionary Force learn how to operate the world’s largest concrete 3D printer as it constructs a 500-square-foot barracks hut at the U.S. Army Engineer Research and Development Center in Champaign, Illinois.

(U.S. Marine Corps photo)

The team started with a computer-aided design model on a 10-year old computer, concrete and a 3D printer. Once they hit print, the concrete was pushed through the print head and layered repeatedly to build the walls. In total, the job took 40 hours because Marines had to monitor progress and continually fill the printer with concrete. However, if there was a robot to do the mixing and pumping, the building could easily be created in one day, Friedell said.

“In 2016, the commandant said robots should be doing everything that is dull, dangerous and dirty, and a construction site on the battlefield is all of those things,” Friedell said.

The ability to build structures and bases while putting fewer Marines in danger would be a significant accomplishment, he said.

“In active or simulated combat environments, we don’t want Marines out there swinging hammers and holding plywood up,” said Friedell. “Having a concrete printer that can make buildings on demand is a huge advantage for Marines operating down range.”

It normally takes 10 Marines five days to construct a barracks hut out of wood. With this FUE, the Marine Corps proved four Marines with a concrete printer can build a strong structure in less than two days. Ideally, the Corps’ use of concrete printers will span the full range of military operations, from combat environments to humanitarian aid and disaster relief missions.

The world’s largest concrete 3D printer constructs a 500-square-foot barracks hut at the U.S. Army Engineer Research and Development Center in mid-August in Champaign, Illinois.

(U.S. Marine Corps photo)

As the first military services on site in natural disasters, the Navy and Marine Corps are great at providing food and water, but struggle to provide shelter, Friedell said. In many locations, cement is easier to acquire than wood. During humanitarian or disaster relief missions, Marines could safely and quickly print houses, schools and community buildings to replace those destroyed.

“This capability would enable a great partnership with the local community because it is low cost, easy to use, and robotics could print the buildings,” Friedell said. “We can bring forward better structures, houses and forward operating bases with less manpower and fewer Marines in harm’s way.”

The AM Team plans to conduct further testing and wants to get the capability into the hands of more Marines to inform future requirements for cutting-edge technology and autonomous systems.

“Our future operating environment is going to be very kinetic and dangerous because we don’t necessarily know what we’re going into,” said Friedell. “The more we can pull Marines out of those potentially dangerous situations — whether it’s active combat or natural disaster — and place robotics there instead, it helps us accomplish the mission more efficiently.”

This article originally appeared on the United States Marine Corps. Follow @USMC on Twitter.
