A helicopter doesn’t fly; it beats the air into submission.

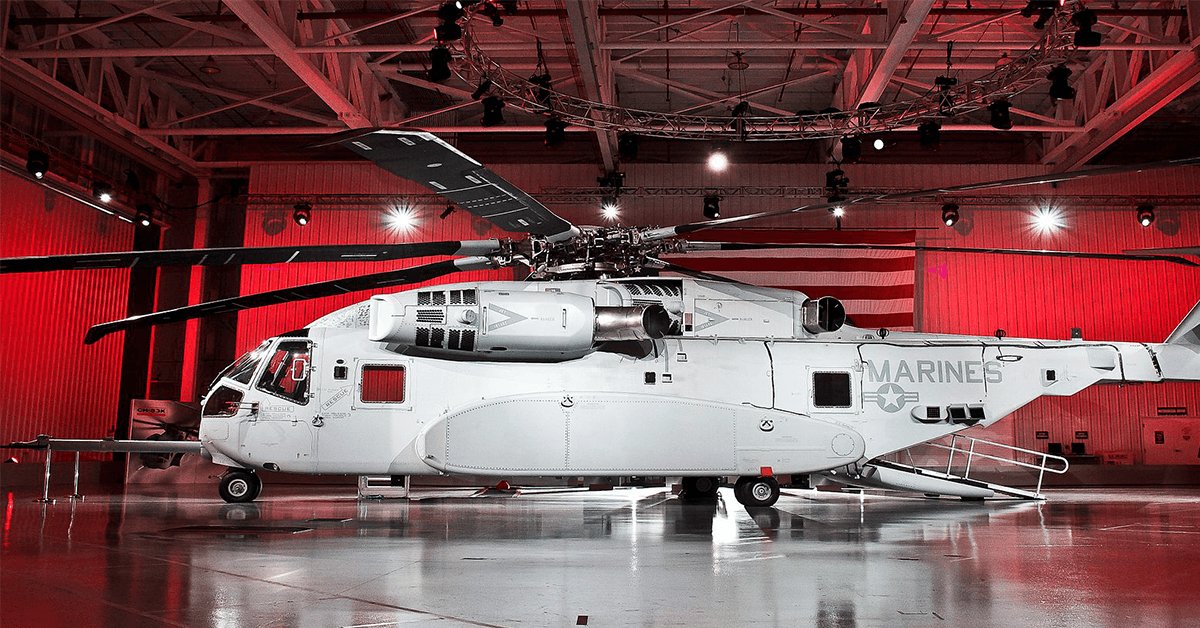

With the capacity to lift 88,000 lbs, the Sikorsky CH-53K King Stallion is a true workhorse. It’s primed to be the premier lift helicopter by leveraging the lessons learned from its predecessors, the CH-53A, D and E.

The new metal beast of the air had its first flight on October 27, 2015. The 55-minute flight at Sikorsky’s West Palm Beach flight test center was a real milestone considering the technical delays since 2014, mainly from the main gearbox.

The King Stallion will replace the current largest and heaviest helicopter in the military, the Marine Corps’ CH-53E Super Stallion, which has been in service since 1980. Like the CH-53E, the King Stallion will also serve in the Corps. Although it’s not a game changer, it’s an overall improvement in power, speed, lift, structure, and more.

Here’s its first performance:

YouTube: Sikorsky Aircraft
