Here’s how the Navy tests its new carrier launch system

Harold C. Hutchison
Sep 12, 2019 2:52 AM PDT
1 minute read
Navy photo

SUMMARY

If you’ve seen Top Gun or any footage of an American aircraft carrier doing its thing, you’ve probably seen catapults launch aircraft. These impressive devices can launch a fully-loaded plane, getting it up to speeds as high as 200 knots …

If you've seen Top Gun or any footage of an American aircraft carrier doing its thing, you've probably seen catapults launch aircraft. These impressive devices can launch a fully-loaded plane, getting it up to speeds as high as 200 knots in a matter of seconds — if everything's working right.

The same is true for the electromagnetic aircraft launch system, or EMALS, in use on the Navy's newest aircraft carrier, USS Gerald R. Ford (CVN 78).


But how does the Navy make sure everything's working as intended? How can they verify that any repairs they've made have actually fixed the thing? There are 122 millions reasons why you wouldn't want to test it out on a brand new F-35C Lightning II. So, because USAA doesn't offer that magnitude of coverage, the US Navy needs a cheap, solid stand-in.

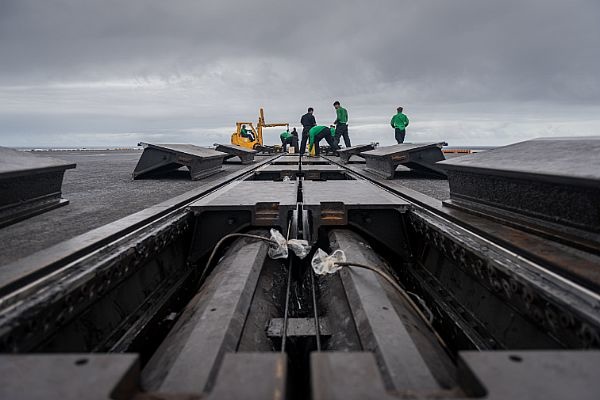

When you fix the catapult, you want to make sure you got it right.

(U.S. Navy photo by Petty Officer 3rd Class Cole C. Pielop)

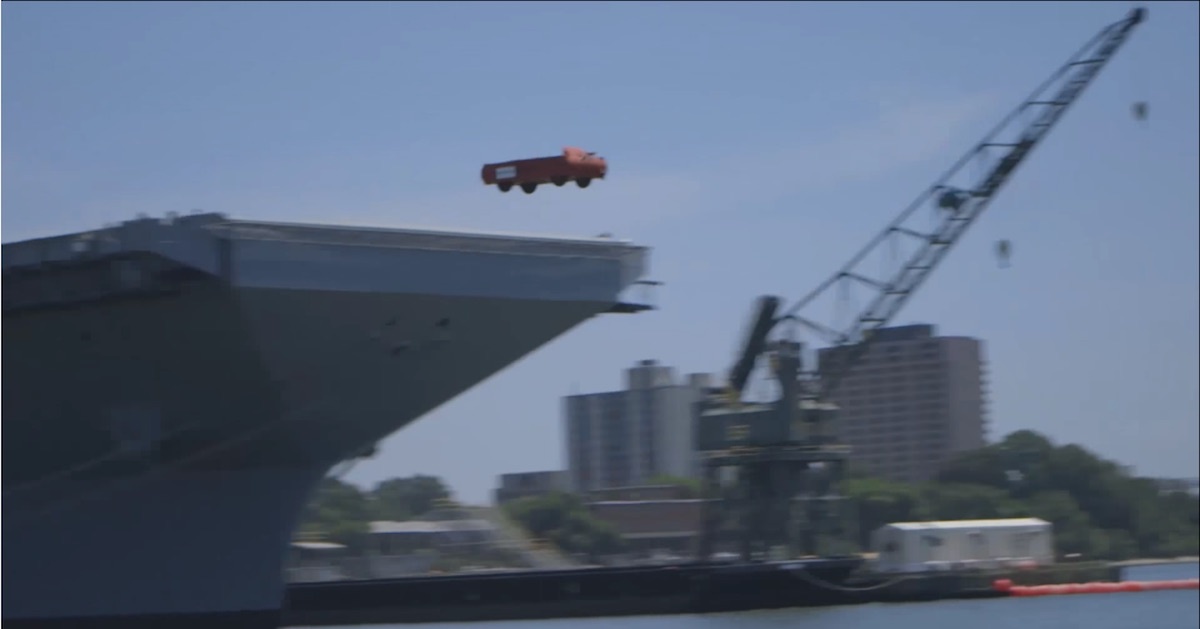

According to one Navy release, they use what are called "dead loads" to simulate the weight of planes. These are essentially wheeled sleds made of solid metal that can be launched in relatively shallow water ("relative" to the USS Gerald R. Ford's maximum draft of 41 feet). That makes recovering the dead loads easy.

Since the dead loads aren't outfitted with electronics — or even an engine — they are relatively easy to replace. Furthermore, if they are recovered, they can be reused. It's a very cheap way to make sure that your aircraft launch system is working, be it a traditional catapult or the new EMALS.

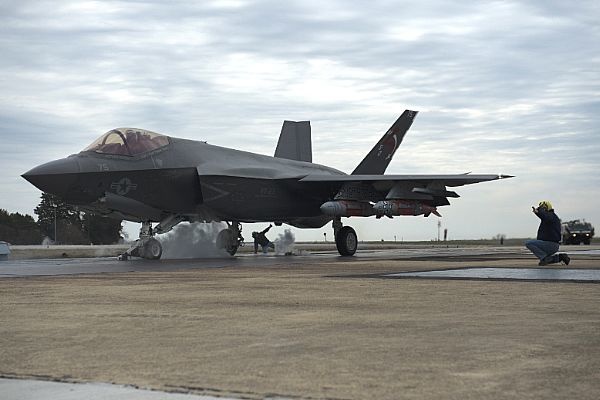

When you are trying to launch a 2 million F-35 Lightning from a carrier, you want to make sure the launching system works.

(U. S. Navy photo by Arnel Parker)

To watch the Navy test the EMALS on USS Gerald R. Ford, check out the video below. You even get a view from the perspective of the "dead load," giving you a taste of the catapult's power.
