This 30-year-old helo does the Coast Guard’s most important work

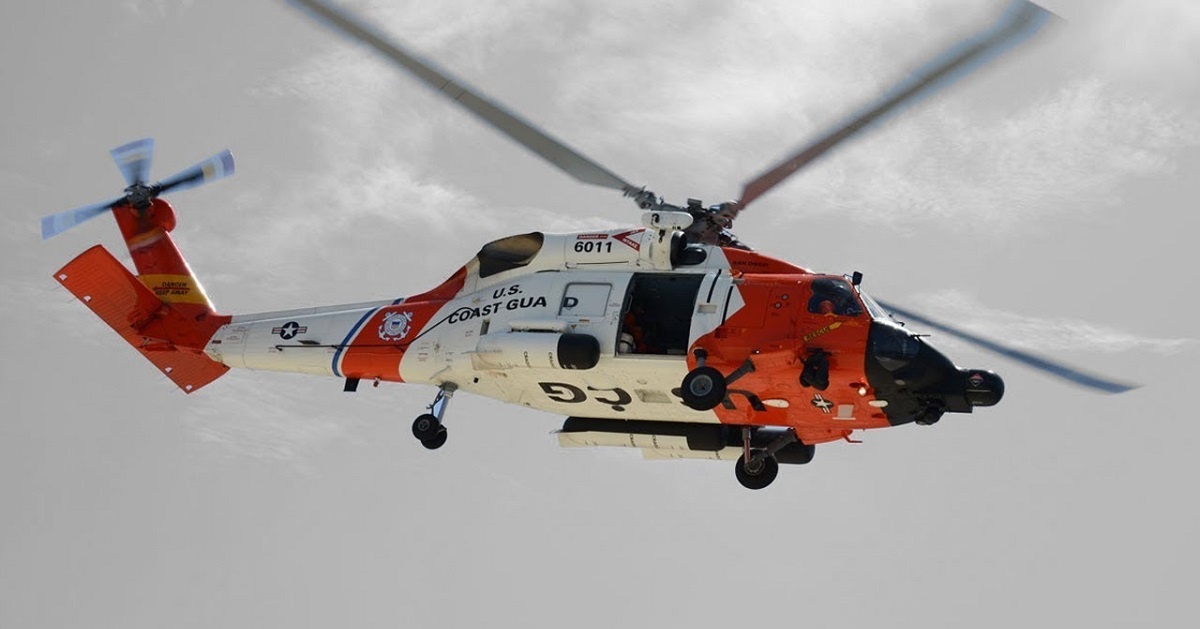

The H-60 “Jayhawk” is an incredible airframe, to say the least. Today, it’s one of the most-produced helicopters in the world and it’s in service with a vast number of countries. The United States Army alone has almost 3,000 either in service or on order. But there’s one user of the H-60 that doesn’t get much attention: The United States Coast Guard.

Currently, according to a Coast Guard representative, the USCG has 45 MH-60T Jayhawk helicopters in service. Originally, the Coast Guard got 42 HH-60Js from Sikorsky, but in the years since, three Jayhawks were operational losses and six were re-manufactured from former U.S. Navy SH-60F helicopters.


Just as the Navy replaced their SH-3 Sea Kings with SH-60/MH-60s, the Coast Guard is turning to the HH-60J to replace HH-3 Pelican search-and-rescue helicopters. According to MilitaryFactory.com, the first 42 HH-60Js were delivered between 1990 and 1996, making this one of the youngest versions of the H-60 in service.

This 30-year-old helo does the Coast Guard’s most important work

U.S. Coast Guardsmen with Coast Guard Station San Diego participate in a search and rescue exercise (SAREX) in an HH-60J Jayhawk helicopter near Naval Auxiliary Landing Field San Clemente Island, Calif.

(DoD photo by Sgt. Keonaona C. Paulo, U.S. Marine Corps)

The original HH-60J was an unarmed helicopter, optimized for the search-and-rescue mission. It was equipped with a radar for locating ships and could also accept a forward-looking infrared camera. In 2007, the fleet was rebuilt to the MH-60T standard. This new and improved helicopter has a top speed of 204 miles per hour, a maximum range of 808 miles, and a crew of four.

This 30-year-old helo does the Coast Guard’s most important work

The crew of an Air Station Kodiak MH-60 Jayhawk helicopter work together to carry an injured woman to emergency medical personnel at the Kodiak Municipal Airport in Kodiak, Alaska

(U.S. Coast Guard photo by Auxiliarist Tracey Mertens)

This new Jayhawk packs heat two ways: it has a M240 7.62mm machine gun and a Barrett M82A1 .50-caliber sniper rifle. This is known as the Airborne Use of Force package, and it was first installed on MH-68 Stingray helicopters used by the Coast Guard’s Helicopter Interdiciton Tactical Squadron, or HITRON.

This 30-year-old helo does the Coast Guard’s most important work

A Coast Guard Air Station MH-60 Jayhawk rescue helicopter crew deployed in Cold Bay diverted from a training flight near Dutch Harbor to medevac a 26-year-old male who reportedly suffered head injuries aboard the 58-foot fishing vessel Cape Reliant.

(U.S. Coast Guard photo courtesy Coast Guard Cutter Alex Haley)

The Coast Guard is planning to keep the Jayhawk in service until 2035. By then, this helicopter will have enjoyed a 45-year-long service career.

Learn more about this long-lasting bird in the video below!

https://www.youtube.com/watch?v=fEZsGPTxtcM

www.youtube.com
